SoundCam Go - The first acoustic camera for a smartphone

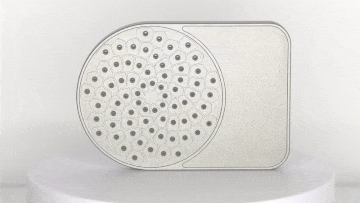

The SoundCam Go transforms your smartphone into a powerful acoustic camera. The compact module with 72 microphones attaches magnetically to your smartphone using MagSafe and connects via USB-C. The intuitive app displays real-time acoustic images and enables fast and precise localization of sound sources.
With a weight of just 95 g, the SoundCam Go is the ideal mobile entry-level solution for acoustic measurements. It provides all essential features for professional use in a compact, flexible design that is always ready for operation.
Typical Applications
- Compressed air leak detection
- Machine diagnostics and predictive maintenance
- Localization of noise sources in buildings
- Localization of noise inside and around vehicles
- Drone detection and tracking
- Wildlife and animal sound localization
- Applications in education, the maker community, and engineering
Highlights

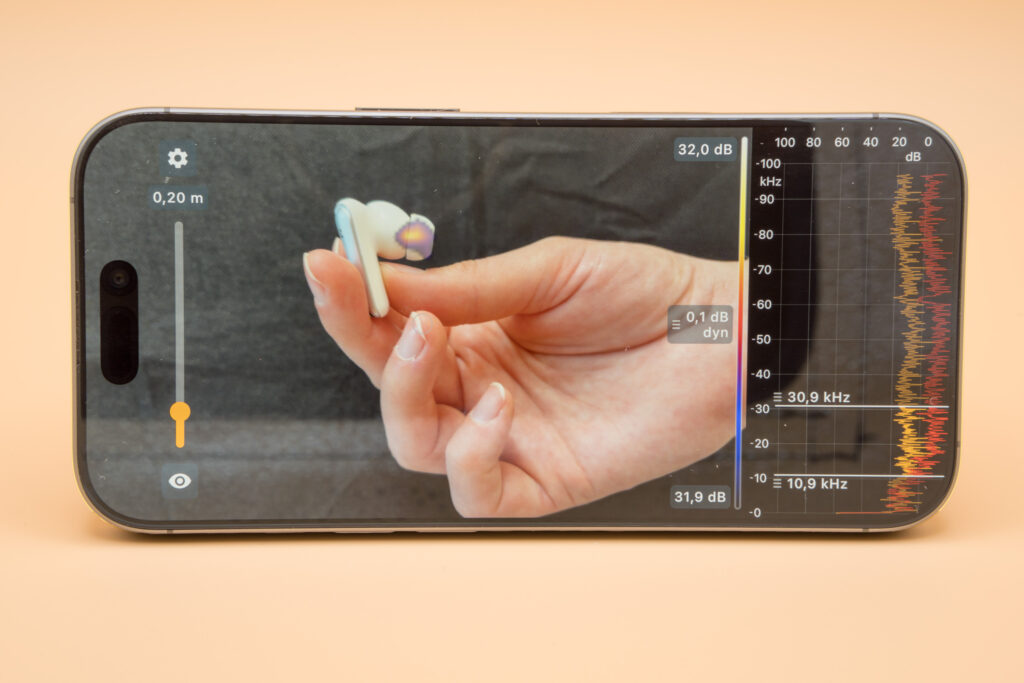

- Real-time acoustic imaging directly on your smartphone
- Compatible with Android and iPhone
- 72 digital MEMS microphones for precise sound source localization
- Frequency range up to 100 kHz for professional ultrasonic applications
- MagSafe mounting and USB-C for quick and easy setup
- Rugged IP54-rated aluminum housing in a compact 95g design
Why SoundCam Go?
- Professional acoustic imaging at a fraction of the cost of conventional acoustic cameras
- Transforms your smartphone into a powerful acoustic camera
- Ready for use within seconds
- Compact and lightweight – ideal for mobile applications
Technical Specifications
Specification | Value |
Microphones | 72 digital MEMS microphones |
Frequency range | 4–100 kHz |
Sampling rate | 200 kHz |
Acoustic frame rate | 30 acoustic images/s |
Maximum sound pressure level | 120 dB |
Resolution | 24-bit |
Power consumption | 2.5 W |
Battery life | 3 h with a 5,000 mAh phone battery |
Protection class | IP54 |
Weight | 95 g |
Dimensions | 96 × 67 × 8 mm |
Mounting | Magnetic (MagSafe) |
Interface | USB-C |
